Audible Signal

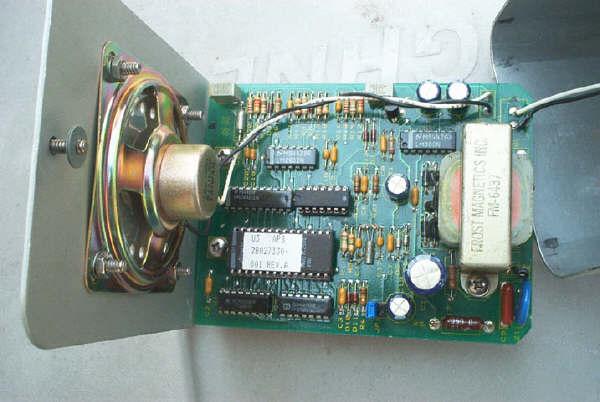

In this view, you can see the little blue jumper in the bottom middle that lets the user decide if this signal will be a "cuckoo" (N & S) signal or a "chirp" (E & W) signal. Typically, these are connected to the corresponding "WALK" signal terminals.
