Inside The Wiley

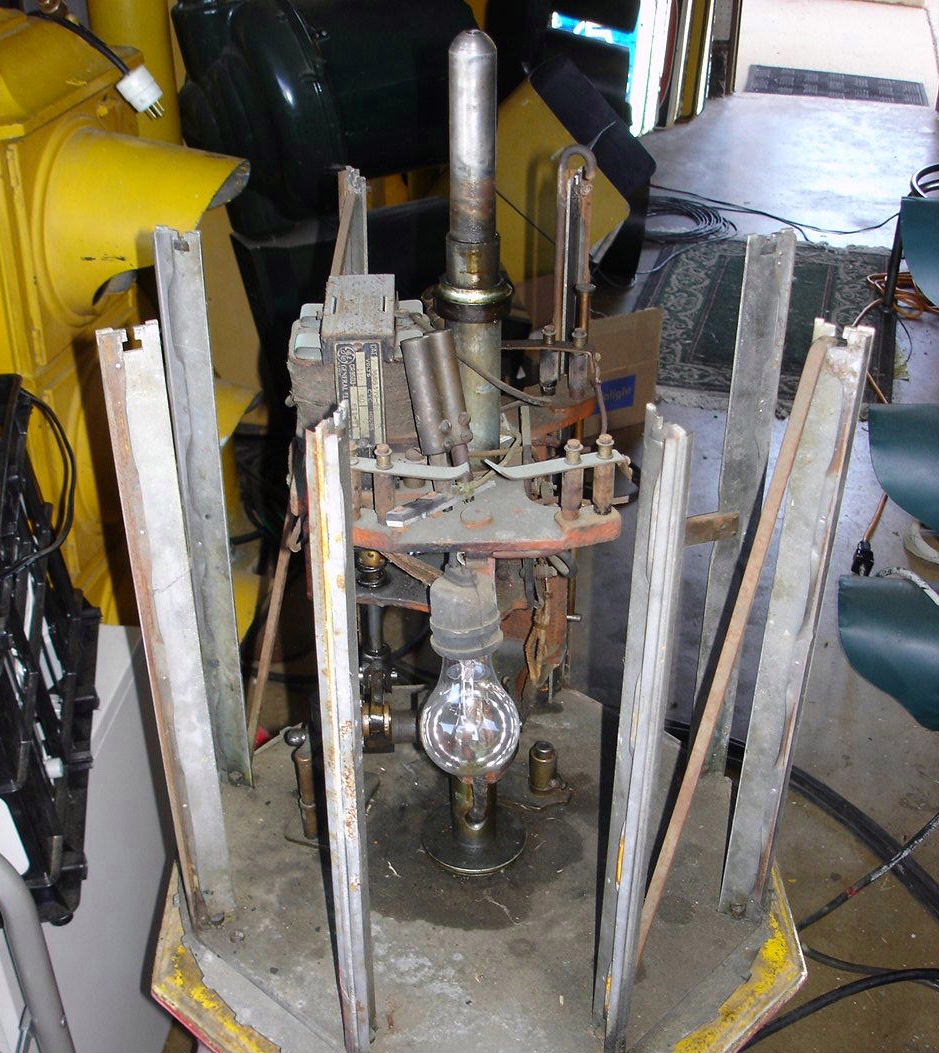

Here's a view inside with the birdcage hood and inner cylinders removed.

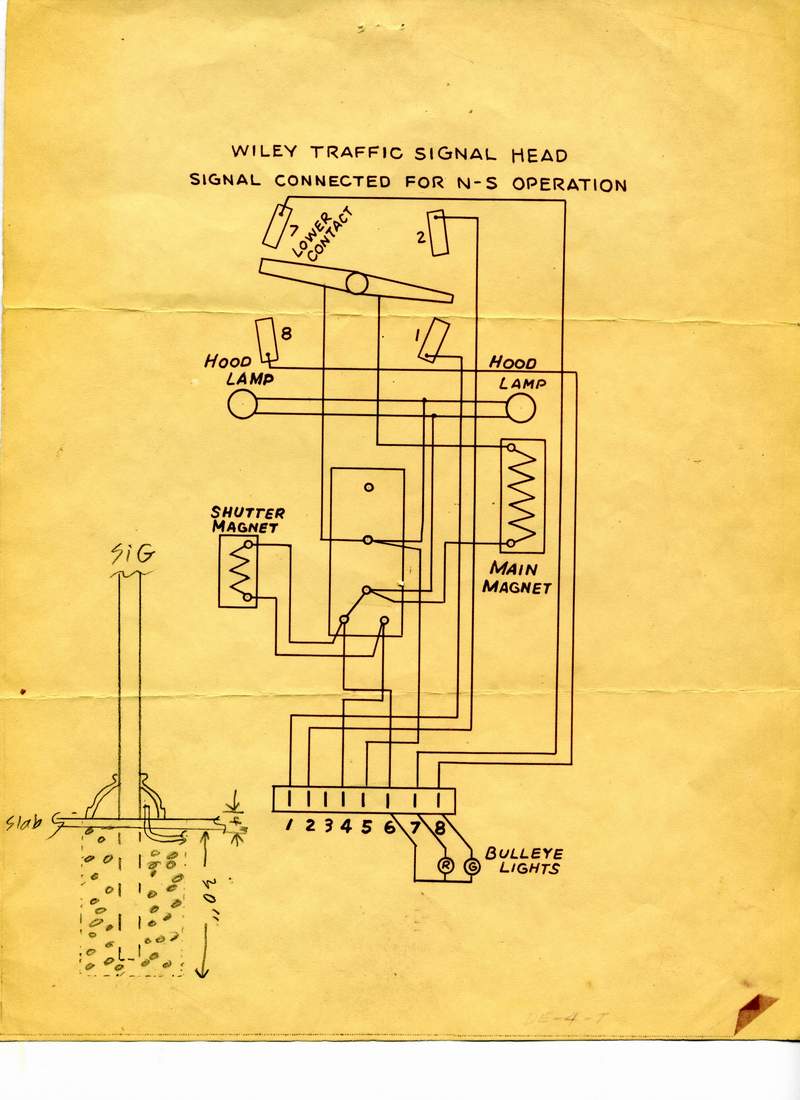

Original Schematic of the wiring of a Wiley.

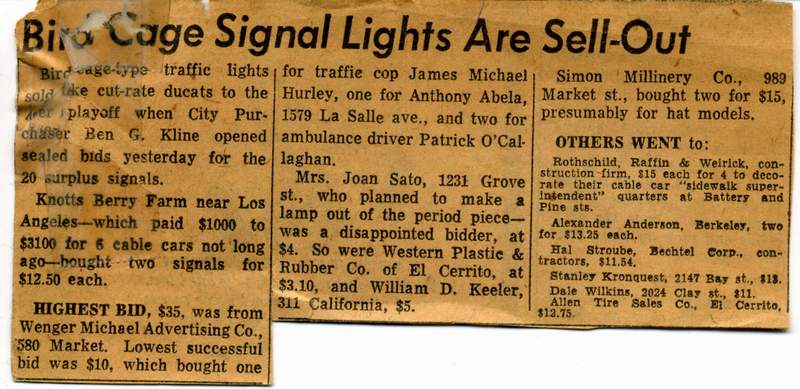

Article of the sale of the last 20 signals dated Dec. 9, 1957.  Today, I only know of about 12 still in existence.
